Understanding electrical wiring can seem daunting, but it’s essential for any DIY enthusiast. One common setup is the 2 lights 1 switch configuration, which is both practical and efficient for lighting spaces.
This wiring method allows you to control two separate lights from a single switch, making it ideal for rooms with multiple light sources. Let’s explore how to set this up safely and effectively.
2 Lights 1 Switch Wiring Diagram
2 Lights 1 Switch Wiring Diagram

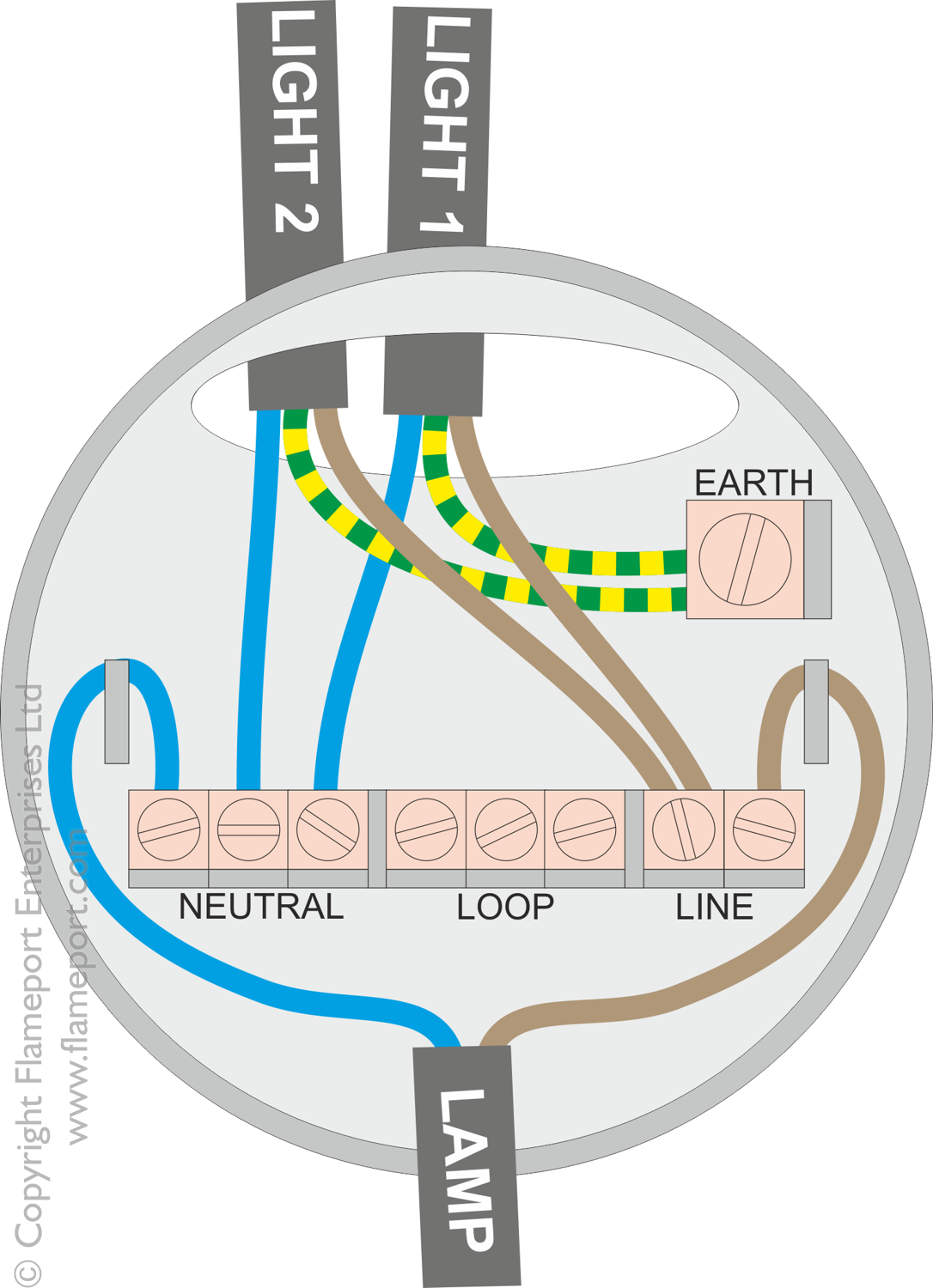

The 2 lights 1 switch wiring diagram typically involves connecting two light fixtures to a single switch. This setup simplifies control and can enhance the ambiance of your room.
To begin, ensure you have the necessary tools: wire strippers, electrical tape, and a voltage tester. Safety should always be your priority when working with electricity. Turn off the power at the circuit breaker before starting any wiring project.
Next, connect the wires according to the diagram. The black wire from the power source connects to the switch, while the white wires lead to each light fixture. Properly secure all connections with electrical tape to prevent any hazards.
After completing the wiring, turn the power back on and test your setup. If everything is connected correctly, both lights should illuminate when you flip the switch. Enjoy your newly wired lighting system!
With a little patience and attention to detail, setting up a 2 lights 1 switch system can be straightforward. This project not only improves functionality but also enhances your home’s overall lighting design.
