Understanding electrical wiring can seem daunting, but with the right guidance, it becomes manageable. One common setup in homes is the 2 way switch, which allows you to control a light from two different locations.
Learning about the 2 way switch wiring diagram is essential for anyone looking to enhance their DIY skills. This knowledge not only helps in home improvement projects but also ensures safety when dealing with electrical systems.
2 Way Switch Wiring Diagram
2 Way Switch Wiring Diagram

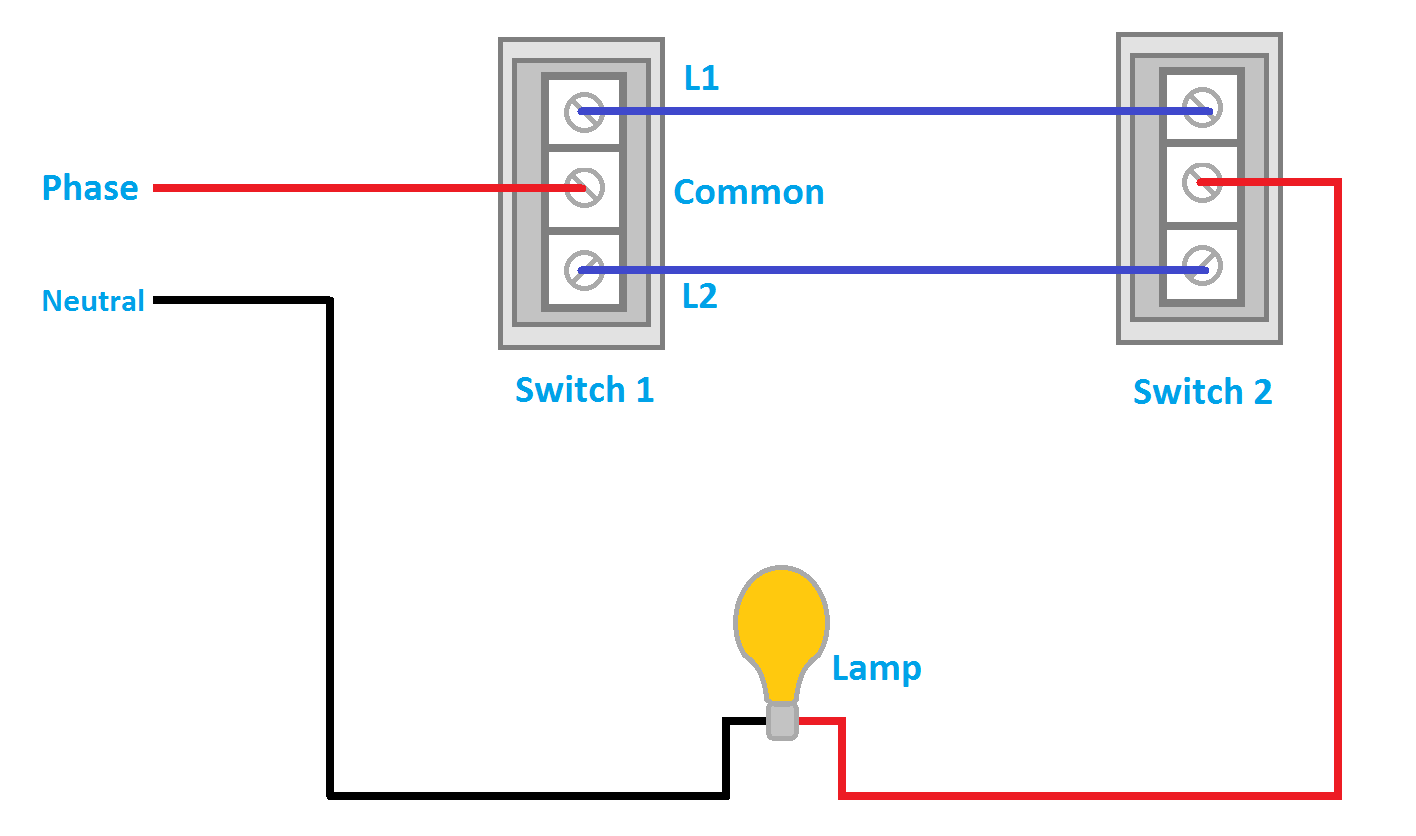

A 2 way switch wiring diagram illustrates how two switches can control a single light fixture. This setup is particularly useful in hallways or large rooms where multiple entry points exist.
To create this system, you need two single-pole switches and a light fixture. The wiring involves connecting the switches with traveler wires and ensuring proper grounding for safety. Following the diagram closely will help avoid mistakes.
When installing, always turn off the power at the circuit breaker to prevent any accidents. Double-check your connections before restoring power to ensure everything is wired correctly. This precaution is vital for both functionality and safety.
Once installed, test the switches to confirm they work as intended. If everything functions smoothly, you’ve successfully set up a 2 way switch system that enhances convenience in your home.
