Understanding how to wire a 240v electric water heater can seem daunting, but with the right guidance, it becomes manageable. Proper wiring ensures safety and efficiency, making your water heater function optimally.
Many homeowners prefer 240v electric water heaters due to their quick heating capabilities. Knowing the wiring diagram is essential for installation or troubleshooting, ensuring you have hot water when needed.
240v Electric Water Heater Wiring Diagram
240v Electric Water Heater Wiring Diagram

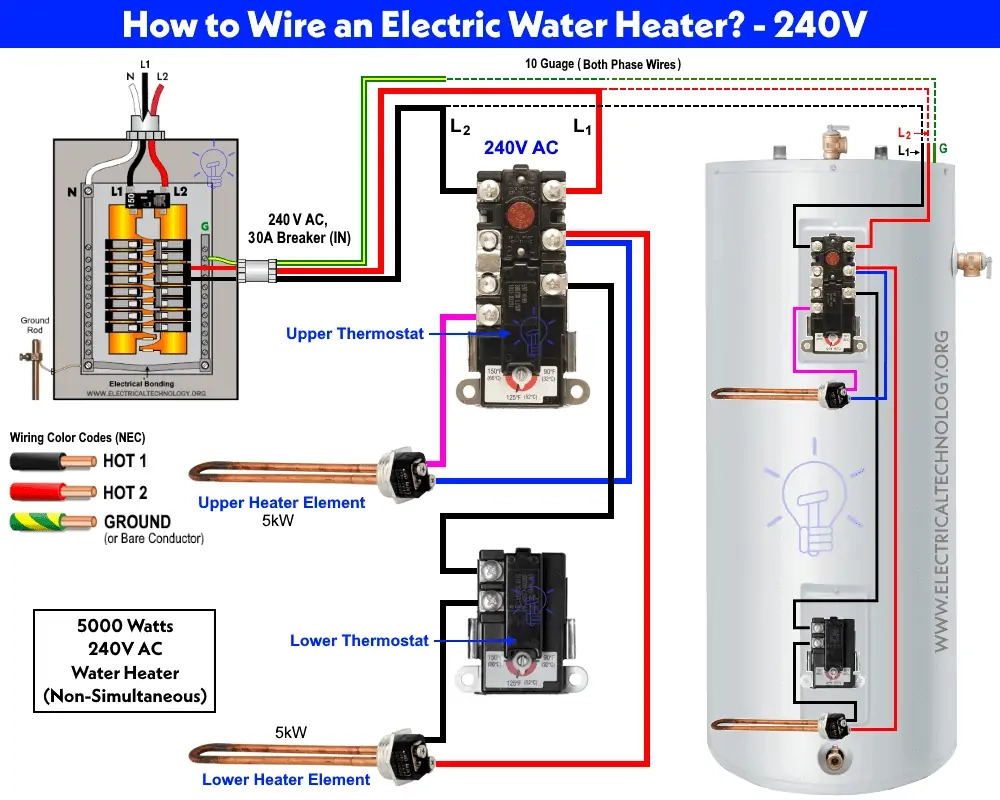

The 240v electric water heater wiring diagram typically includes a power source, thermostat, and heating elements. Familiarizing yourself with these components is crucial for a successful installation.
Start by connecting the power supply to the water heater. Ensure that the circuit breaker is rated appropriately for your unit. This step is vital for preventing electrical overloads and ensuring safety.
Next, connect the thermostat according to the wiring diagram. The thermostat regulates the water temperature, so accurate connections are essential for optimal performance and energy efficiency.
Finally, connect the heating elements. These components are responsible for heating the water. Double-check all connections to ensure they are secure and insulated to prevent any electrical hazards.
With a clear understanding of the 240v electric water heater wiring diagram, you can confidently tackle your installation or repairs. Always prioritize safety and consult a professional if unsure about any steps.
