Understanding how to wire a doorbell can seem daunting, but it’s easier than you might think. With just a few basic tools and a clear plan, you can have your doorbell up and running in no time.
Many homeowners opt for the 3 wire doorbell system due to its reliability and ease of installation. This setup allows for a consistent power supply, ensuring your doorbell works every time someone presses the button.

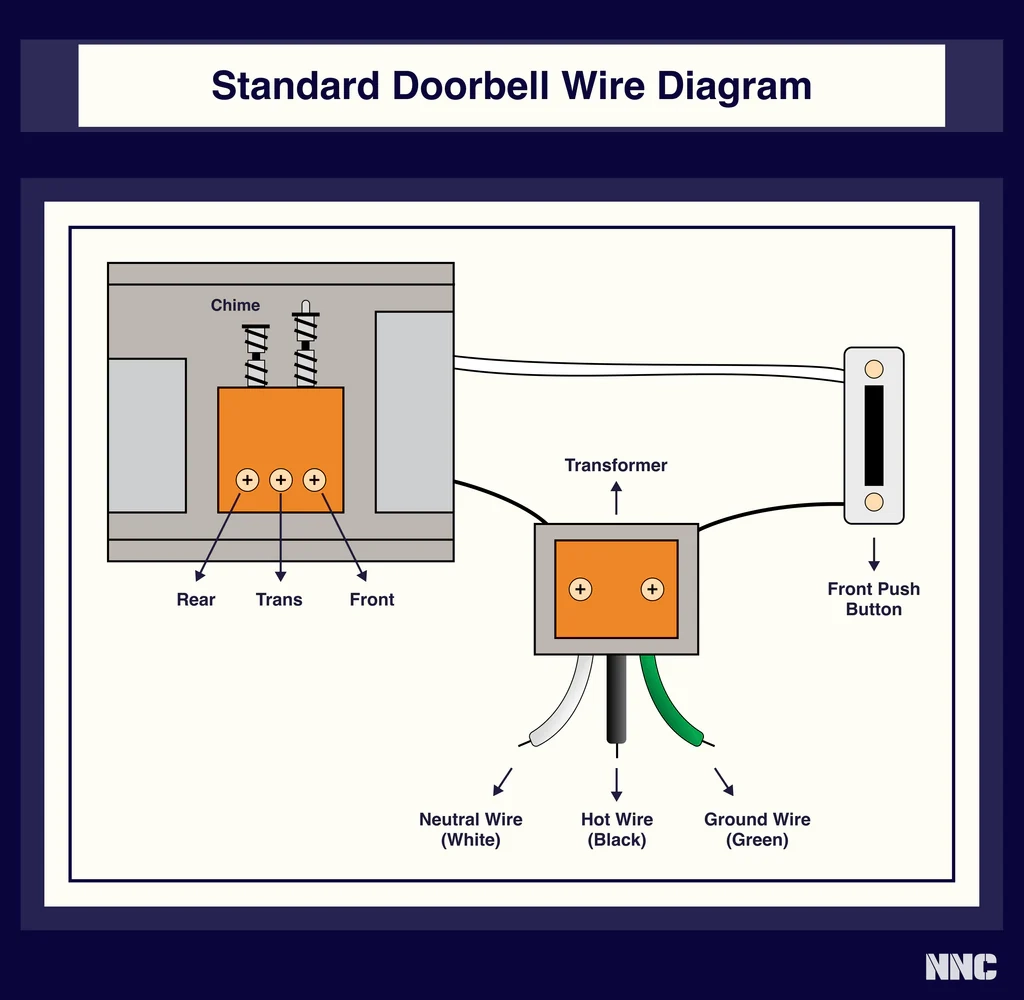

3 Wire Doorbell Wiring Diagram
3 Wire Doorbell Wiring Diagram
The 3 wire doorbell system typically consists of two wires for power and one for the chime. The power wires connect to your transformer, while the chime wire connects to the doorbell itself. This configuration is straightforward and efficient.
To begin, locate your transformer, usually found near your electrical panel. Connect the two power wires from the transformer to the doorbell button. Make sure to secure all connections tightly to avoid any issues.
Next, connect the chime wire from the doorbell button to the chime unit. This wire carries the signal that activates the chime when someone presses the button. Double-check all connections before powering on.
Once everything is connected, turn on the power and test your doorbell. If it rings, congratulations! You’ve successfully wired your 3 wire doorbell system. If not, recheck your connections for any loose wires.
Wiring a doorbell doesn’t have to be complicated. With a little patience and attention to detail, you can enjoy the convenience of a working doorbell in your home. Happy wiring!
