Understanding network cabling can seem daunting, but it doesn’t have to be. With the right information, anyone can grasp the basics of Cat5e wiring and how it works in various setups. This knowledge is essential for home and office networking.
Cat5e cables are widely used for Ethernet connections, providing reliable data transmission. Knowing how to wire them correctly ensures optimal performance and connectivity. Let’s dive into the details of the Cat5e wiring diagram A or B.
Cat5e Wiring Diagram A Or B
Cat5e Wiring Diagram A Or B

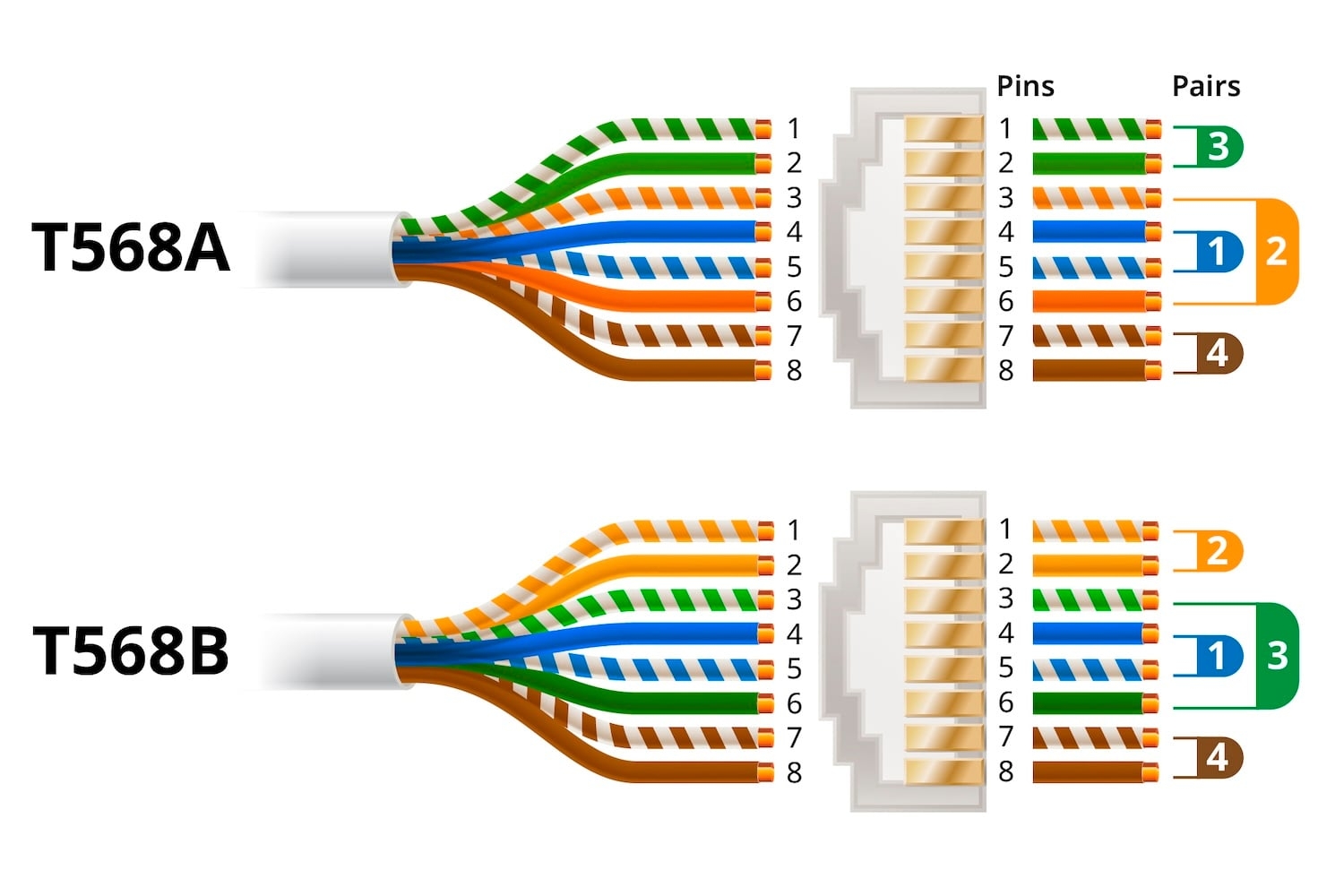

When setting up a network, you may encounter two wiring standards: T568A and T568B. Both standards are effective, but they differ in color coding. Understanding these differences is crucial for proper installation.
The T568A wiring scheme is often recommended for residential installations. It uses a specific color order that can help avoid interference with other devices. This standard is also compatible with older wiring systems, making it a popular choice.
On the other hand, T568B is frequently used in commercial settings. Many businesses prefer this standard due to its widespread adoption. If you’re connecting to existing networks, it’s essential to know which standard is already in use.
Regardless of the standard you choose, ensure that both ends of your cable are wired consistently. This consistency will prevent connectivity issues and ensure your network runs smoothly. Proper termination is key to achieving optimal performance.
In conclusion, understanding the Cat5e wiring diagram A or B can simplify your networking projects. With a little practice, you’ll be able to set up your network confidently and efficiently, ensuring reliable connections for all your devices.
