Understanding your home’s heating and cooling system can be a game changer. One essential component is the thermostat, which controls your HVAC system’s efficiency. The Ecobee thermostat is a popular choice for many homeowners.
Installing an Ecobee thermostat can seem daunting, but with the right guidance, it becomes manageable. Knowing the wiring diagram is crucial for a successful installation and optimal performance of your thermostat.
Ecobee Thermostat Wiring Diagram
Ecobee Thermostat Wiring Diagram

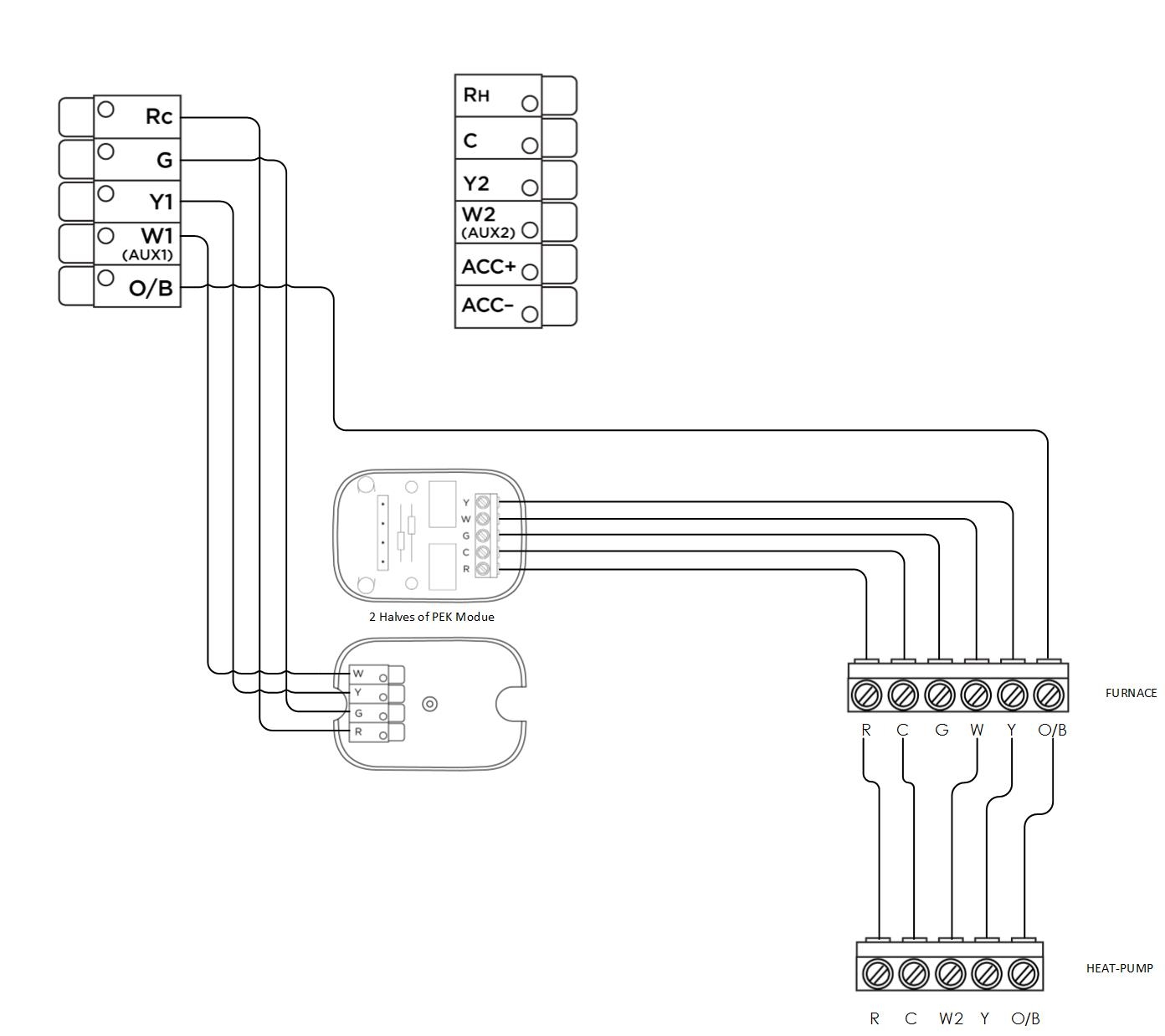

The Ecobee thermostat wiring diagram provides a clear visual representation of how to connect your thermostat to your HVAC system. This diagram typically includes labels for each wire, making it easier to identify their functions.
Common wires you will encounter include R (power), Y (cooling), W (heating), and G (fan). Understanding these connections ensures that your Ecobee thermostat operates smoothly and efficiently, enhancing your home’s comfort.
Before starting the installation, ensure you turn off the power to your HVAC system. This step is vital for safety and prevents any electrical mishaps during the wiring process. Following the diagram closely will help avoid confusion.
Once installed, the Ecobee thermostat offers features like scheduling and remote access through a smartphone app. These functionalities not only improve comfort but also help save on energy bills by optimizing heating and cooling schedules.
Installing an Ecobee thermostat can significantly enhance your home’s energy efficiency. With the right wiring diagram and careful installation, you’ll enjoy a comfortable living space while saving money on energy costs.
