Understanding electrical wiring can be daunting, especially when dealing with specific devices like dimmer switches. The Lutron Dvcl 153p is a popular choice for those looking to control lighting effectively. Knowing how to wire it correctly is essential for safety and functionality.
Many homeowners appreciate the flexibility that dimmer switches provide. With the right wiring diagram, you can easily install the Lutron Dvcl 153p and enjoy customized lighting in your space. This guide will help simplify the process.
Lutron Dvcl 153p Wiring Diagram
Lutron Dvcl 153p Wiring Diagram

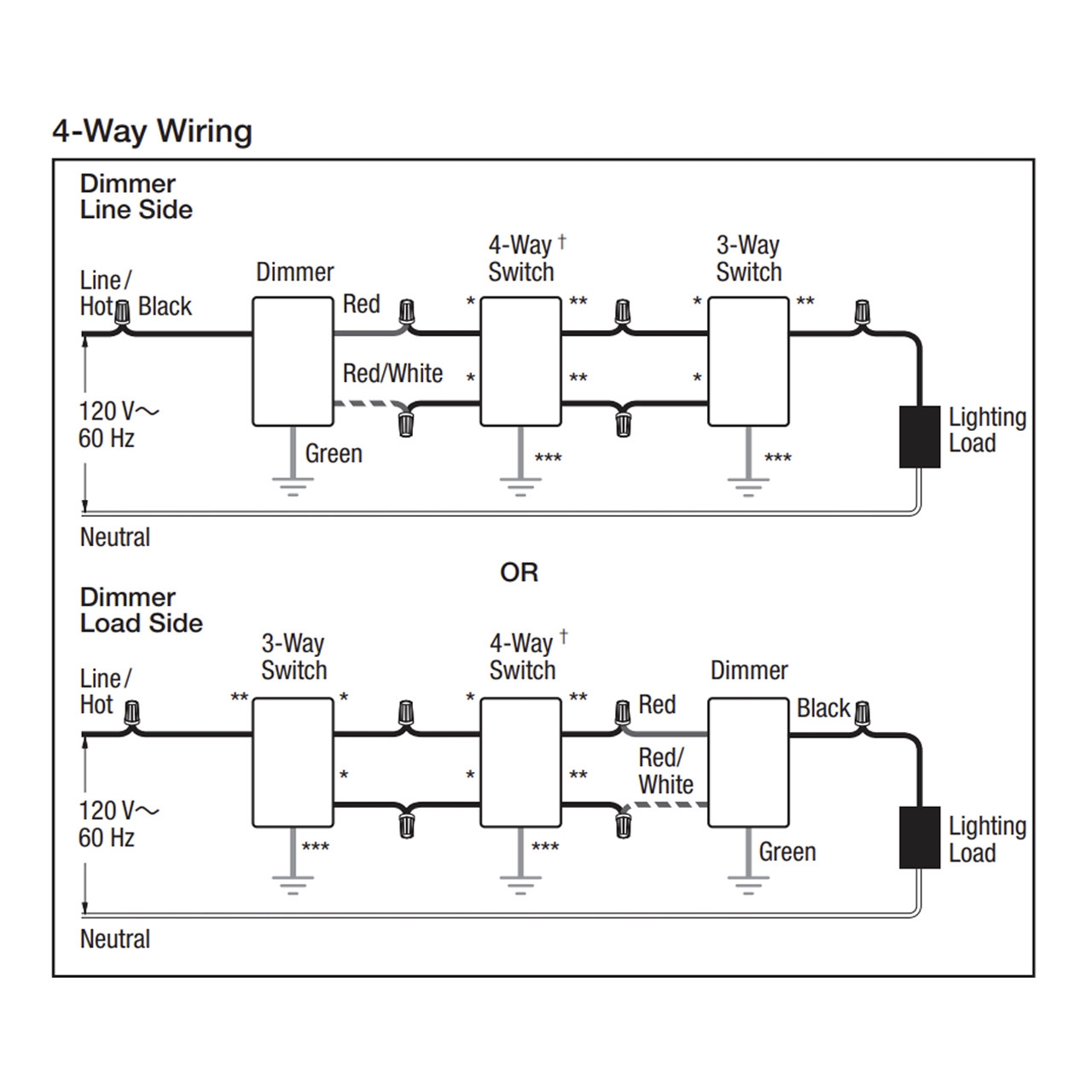

The Lutron Dvcl 153p wiring diagram outlines the connections needed for proper installation. It typically includes a line voltage source, a load connection, and a ground wire. Following this diagram ensures that your dimmer operates smoothly.
When wiring the Lutron Dvcl 153p, always turn off the power at the circuit breaker. This step is crucial for your safety. Use wire nuts to secure connections and ensure that no bare wires are exposed.
After connecting the wires as per the diagram, mount the switch into the electrical box. Make sure it fits snugly and is level. Once everything is in place, restore power and test the dimmer to confirm it works correctly.
Installing the Lutron Dvcl 153p can enhance your lighting experience significantly. With a clear wiring diagram and careful installation, you’ll enjoy adjustable lighting tailored to your needs. Happy wiring!
