Understanding relay wiring can simplify many electrical projects. A relay acts as a switch, allowing you to control a larger load with a smaller signal. This is particularly useful in automotive and home applications.
One common type is the 5-pin relay, which is widely used due to its versatility. Knowing how to read a relay wiring diagram 5 pin can help you troubleshoot issues or set up new circuits effectively.
Relay Wiring Diagram 5 Pin
Relay Wiring Diagram 5 Pin
The 5-pin relay typically includes pins for the coil and the switch contacts. The coil pins activate the relay, while the contact pins manage the power flow. Understanding this layout is crucial for proper installation.

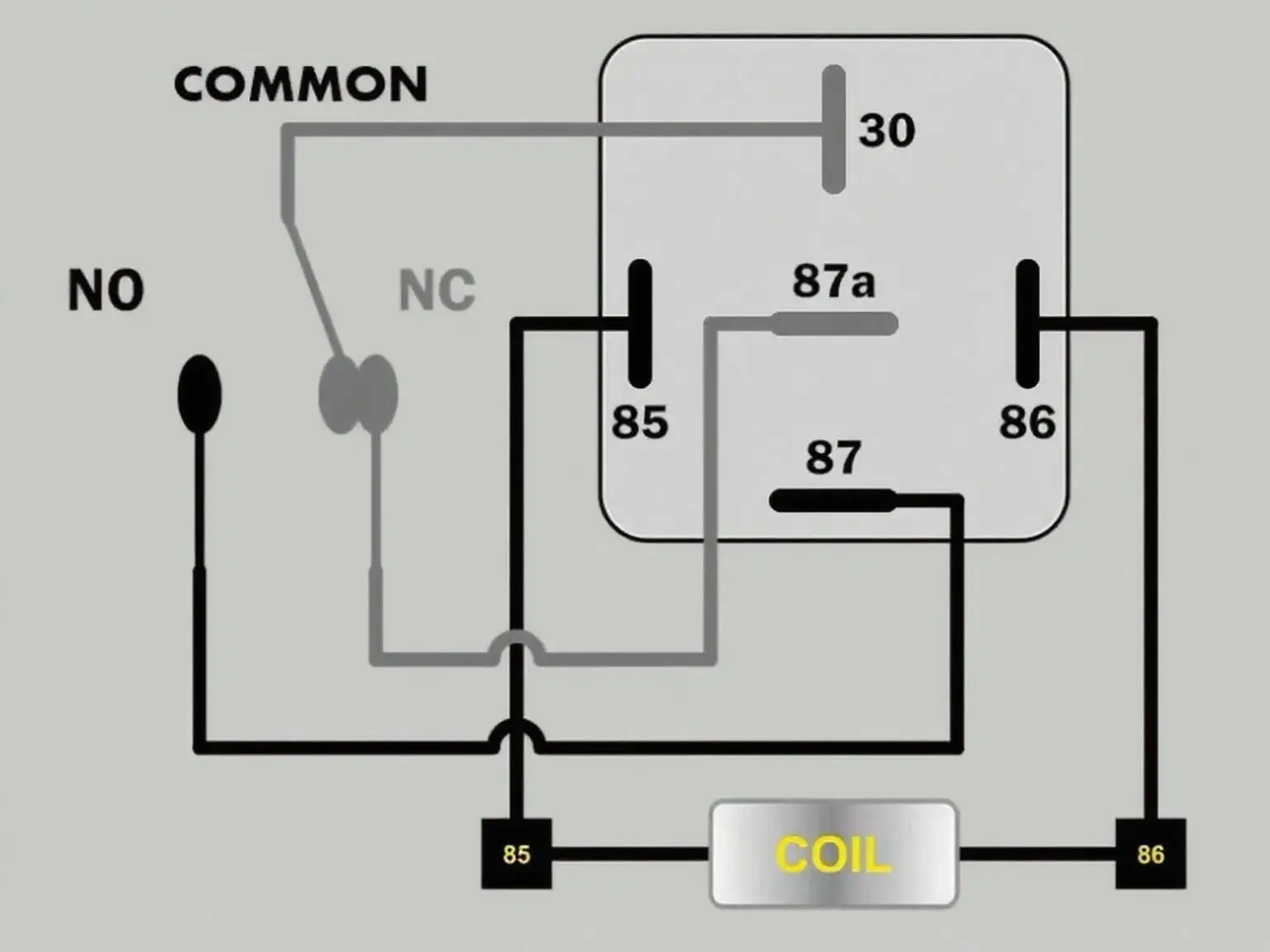

When examining a relay wiring diagram 5 pin, you’ll notice that two pins are for the coil, while the other three are for normally open (NO) and normally closed (NC) contacts. This configuration allows for flexible circuit designs.
It’s essential to connect the relay correctly to avoid damage. Ensure that the power supply matches the relay’s specifications and that all connections are secure. A well-connected relay enhances reliability in your projects.
In summary, mastering the relay wiring diagram 5 pin can empower you in various electrical tasks. Whether you’re working on vehicles or home systems, this knowledge will prove invaluable for efficient and safe operations.
