Understanding network connections is essential for anyone setting up a home or office network. One key component in this setup is the RJ45 connector, which is widely used for Ethernet cables. Knowing how to wire it correctly can save you time and frustration.
Getting familiar with the RJ45 connector wiring diagram can help you ensure a stable and efficient network connection. This guide will walk you through the basics of wiring an RJ45 connector, making the process easier for you.
Rj45 Connector Wiring Diagram

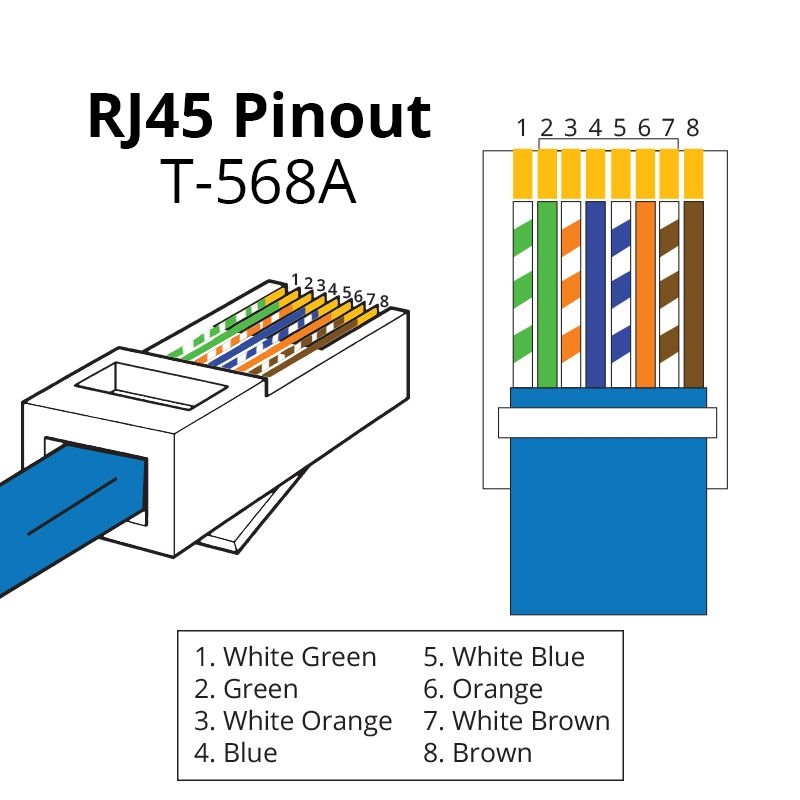

RJ45 Connector Wiring Diagram
The RJ45 connector typically has eight pins, each serving a specific purpose. The wiring follows a standard color code that helps maintain consistency across different cables. Understanding this color code is crucial for proper installation.
There are two main wiring standards: T568A and T568B. Both standards use the same pinout but differ in color arrangement. Choosing one standard and sticking to it throughout your network is essential for optimal performance.
When wiring your RJ45 connector, start by stripping the cable jacket and untwisting the pairs of wires. Arrange them according to your chosen standard, ensuring that each wire reaches its designated pin in the connector. This step is vital for a reliable connection.
After inserting the wires into the RJ45 connector, use a crimping tool to secure them in place. A good crimp ensures that your connection remains stable and minimizes signal loss. Testing the cable with a network tester can help confirm everything is wired correctly.
Wiring an RJ45 connector may seem daunting at first, but with a clear diagram and some practice, it becomes straightforward. Following these steps will help you create a reliable network connection that meets your needs.
