Understanding solar energy systems can be quite rewarding. One essential aspect is the solar array wiring diagram, which helps visualize how components connect. This knowledge empowers homeowners to make informed decisions about their solar installations.
With the rise of renewable energy, more people are exploring solar power. A clear grasp of the solar array wiring diagram simplifies the installation process and ensures efficiency. This guide will help you navigate the basics.
Solar Array Wiring Diagram
Solar Array Wiring Diagram

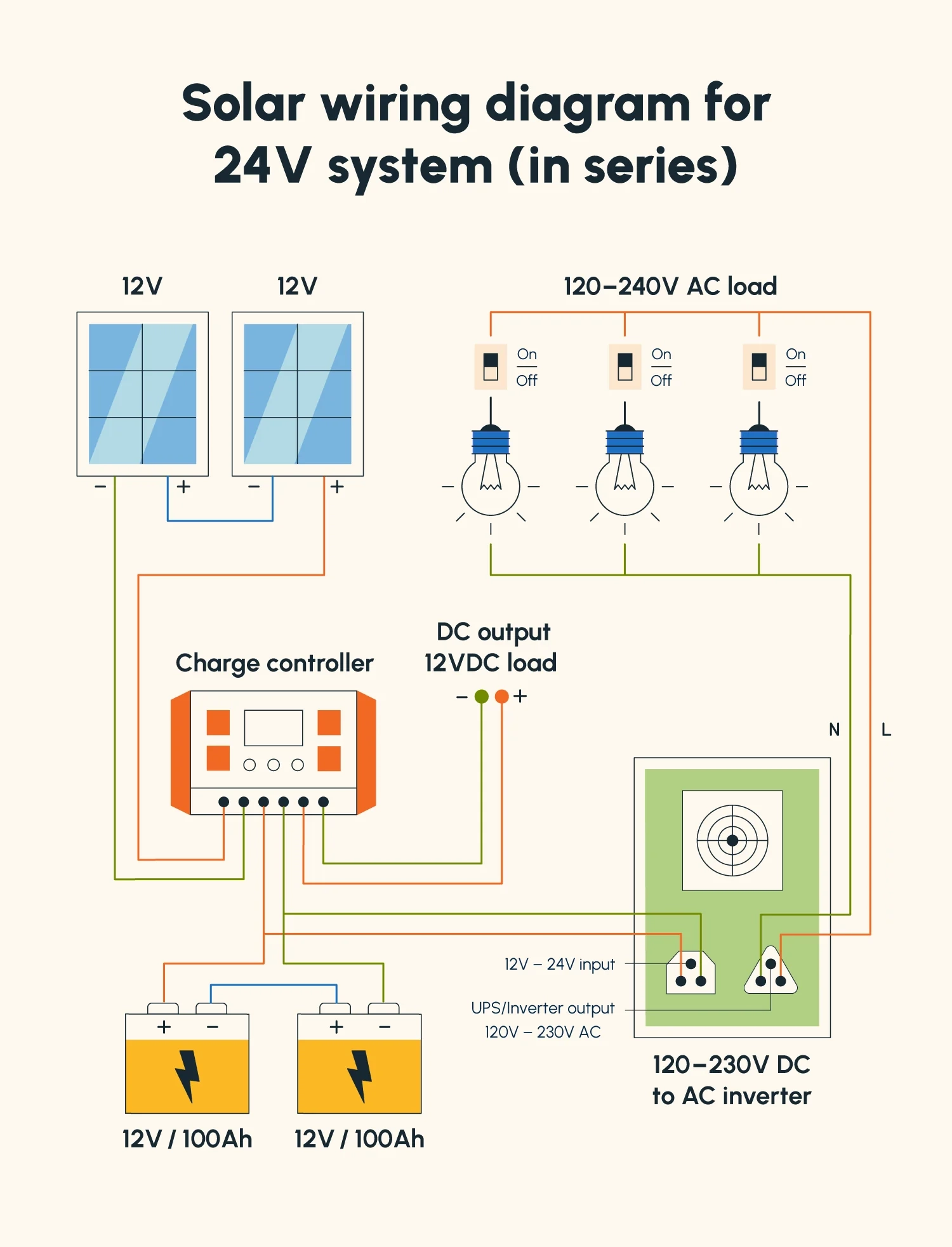

A solar array wiring diagram illustrates how solar panels, inverters, and batteries interconnect. It typically shows the positive and negative terminals, ensuring proper electrical flow. Understanding this diagram is crucial for both DIY enthusiasts and professionals.
When examining a solar array wiring diagram, pay attention to series and parallel connections. Series connections increase voltage, while parallel connections boost current. Knowing these differences can significantly impact your system’s performance and efficiency.
Additionally, safety is paramount when working with electricity. Always ensure that your wiring adheres to local codes and regulations. A well-structured solar array wiring diagram can help prevent costly mistakes and enhance safety during installation.
In conclusion, mastering the solar array wiring diagram is vital for anyone interested in solar energy. With this knowledge, you can confidently approach your solar project and contribute to a greener future.
