Understanding how to wire a traditional doorbell can seem daunting, but it’s quite straightforward once you break it down. With the right diagram and a few tools, you can easily set up your doorbell system.
Many homeowners appreciate the classic charm of a traditional doorbell. Knowing how to install one not only enhances your home’s functionality but also adds to its character. Let’s explore the traditional doorbell wiring diagram and its components.
Traditional Doorbell Wiring Diagram
Traditional Doorbell Wiring Diagram

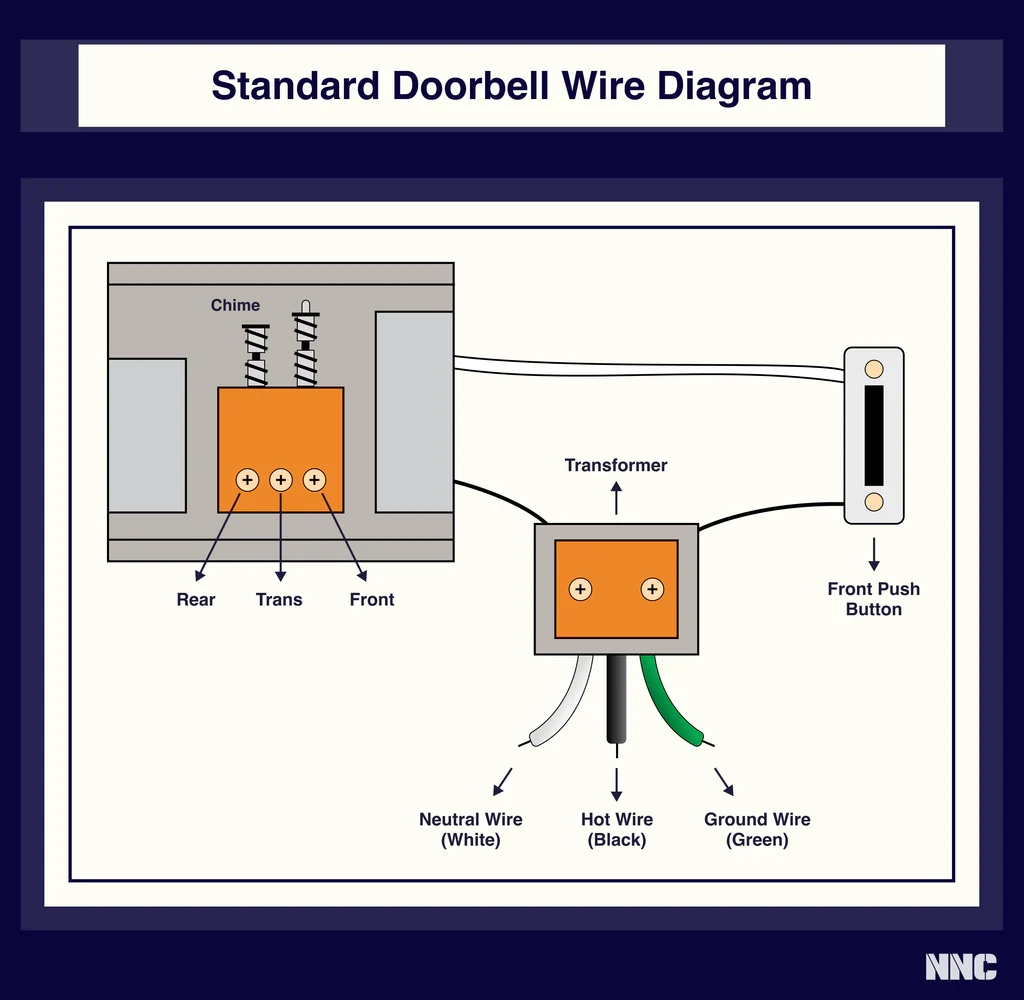

A traditional doorbell system typically consists of a button, transformer, and chime. The wiring connects these components, allowing the button press to activate the chime. Understanding this setup is essential for a successful installation.
The transformer reduces the voltage from your home’s electrical system to a safe level for the doorbell. Usually, it converts 120 volts to 16 volts. This step is crucial for protecting your doorbell from electrical damage.
The button is usually mounted near your front door. When pressed, it sends a signal through the wires to the chime unit inside your home. This simple mechanism creates that delightful sound welcoming guests.
Finally, the chime produces the sound you hear when someone presses the button. There are various styles available, allowing you to choose one that complements your home’s decor. Proper wiring ensures it functions smoothly every time.
Installing a traditional doorbell can be an enjoyable DIY project. With a clear wiring diagram and some basic tools, you can enhance your home’s entryway while enjoying the satisfaction of completing the task yourself.
