Understanding how to properly wire a water heater can save you time and money. A clear wiring diagram is essential for ensuring safety and efficiency during installation. Knowing the basics can make the process much smoother.
Many homeowners choose to install their water heaters themselves. However, without a solid grasp of the wiring involved, this task can quickly become overwhelming. A well-structured water heater wiring diagram is your best friend in this scenario.
Water Heater Wiring Diagram
Water Heater Wiring Diagram

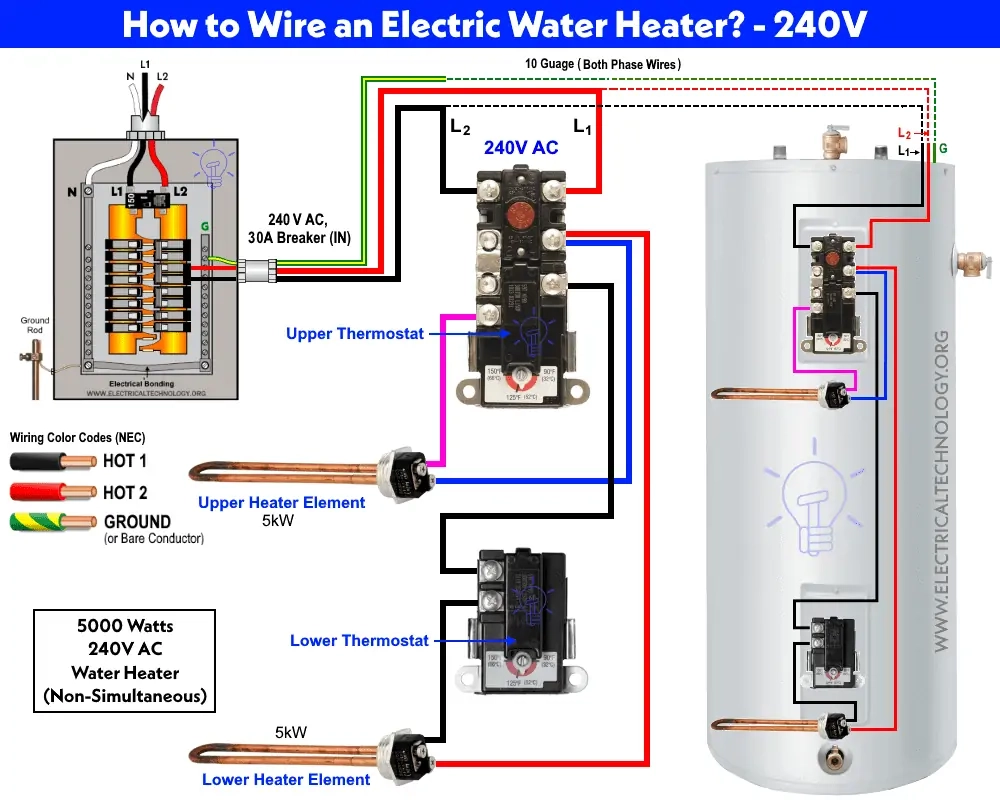

A water heater wiring diagram provides a visual representation of how to connect the electrical components. It typically includes details about the power supply, thermostat, and heating elements. Understanding these connections is crucial for safe operation.
When examining a wiring diagram, pay attention to color codes for wires. These codes indicate which wires connect to the thermostat and heating elements. Following these guidelines helps prevent electrical issues and ensures your water heater functions correctly.
Additionally, always ensure that the power is turned off before starting any wiring work. Safety should be your top priority when dealing with electricity. Double-checking connections can also help avoid potential hazards down the line.
In conclusion, a water heater wiring diagram is an invaluable tool for anyone looking to install or repair their unit. With the right knowledge and precautions, you can tackle this project confidently and enjoy hot water without hassle.
