Understanding how to wire a light switch can seem daunting, but it’s a straightforward task with the right guidance. Whether you’re a DIY enthusiast or just curious, knowing the basics can empower you to tackle simple electrical projects.
Having a clear wiring diagram for a light switch is essential for safety and efficiency. This knowledge not only helps you avoid mistakes but also ensures your home remains well-lit and functional.
Wiring Diagram For A Light Switch
Wiring Diagram For A Light Switch

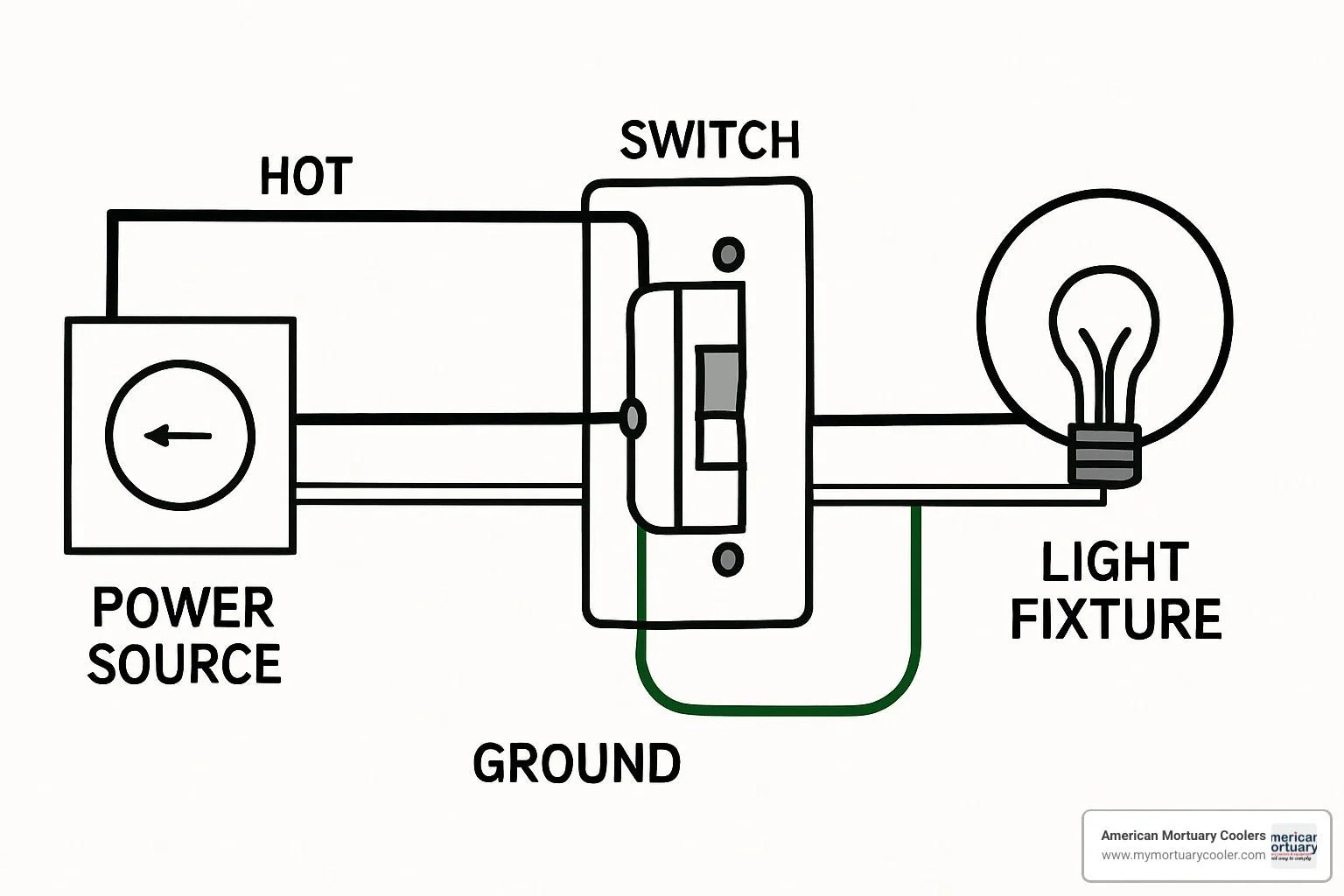

A wiring diagram for a light switch typically includes the power source, the switch itself, and the light fixture. Each component plays a crucial role in completing the circuit effectively.
When wiring a single-pole switch, you’ll connect the black wire from the power source to one terminal of the switch. The other terminal connects to the black wire leading to the light fixture, ensuring proper functionality.
For three-way switches, the diagram becomes slightly more complex. You’ll need to understand traveler wires and how they connect multiple switches to control one light from different locations.
Always remember to turn off the power before starting any wiring project. Safety should be your top priority when dealing with electricity, so take your time and double-check your connections.
With a solid wiring diagram for a light switch and some patience, you can confidently complete your project. Enjoy the satisfaction of illuminating your space while enhancing your DIY skills!
