Understanding how to connect your devices through Ethernet can enhance your internet experience significantly. A clear wiring diagram can simplify the process, making it accessible even for beginners. Knowing the right connections is essential for optimal performance.
Ethernet plugs are commonly used in homes and offices, providing reliable internet connections. With a proper wiring diagram, you can easily set up your network without confusion. This guide will help you grasp the basics of Ethernet wiring.
Wiring Diagram For Ethernet Plug
Wiring Diagram For Ethernet Plug

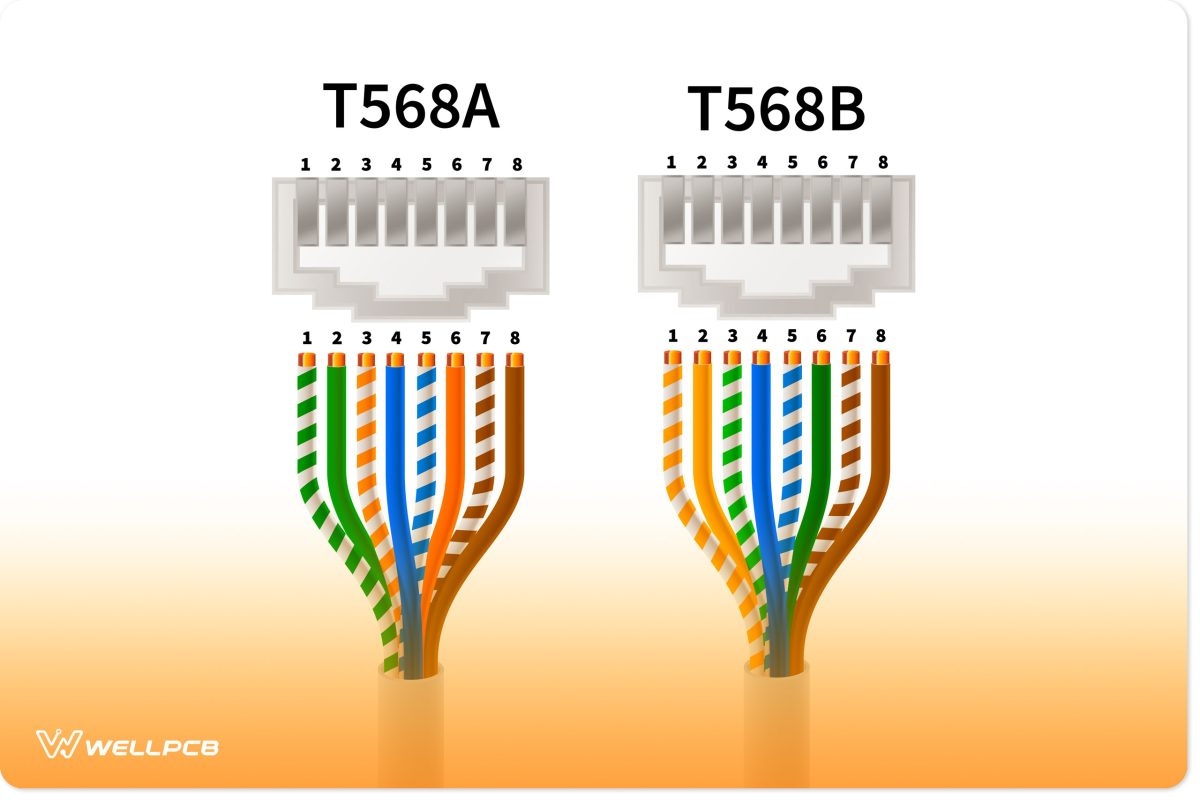

To create a functional Ethernet connection, you need to understand the wiring standards. The T568A and T568B standards are the most common. Both configurations use eight wires, but their arrangement differs slightly.
When wiring an Ethernet plug, ensure you strip the cable ends carefully. Arrange the wires according to the chosen standard before inserting them into the plug. A neat arrangement prevents connectivity issues and ensures a stable connection.
After inserting the wires into the plug, crimp it securely using a crimping tool. This step is crucial as it ensures that each wire makes proper contact with the metal pins inside the plug. A good crimp guarantees a reliable connection.
Testing your Ethernet cable after assembly is vital. Use a cable tester to confirm that all connections are correct and functioning properly. This simple step can save you time and frustration in troubleshooting later on.
Creating your own Ethernet cables can be rewarding and cost-effective. With a clear wiring diagram for Ethernet plugs, you can confidently set up your network. Enjoy seamless connectivity and improved internet speeds with your new setup!
