Understanding how to wire a three-way light switch can seem daunting, but it’s easier than you might think. With the right diagram and a bit of patience, you can tackle this project confidently.
Many homeowners want to control their lights from multiple locations. A three-way switch setup allows you to do just that, enhancing convenience and functionality in your living space.
Wiring Three Way Light Switch Diagram
Wiring Three Way Light Switch Diagram

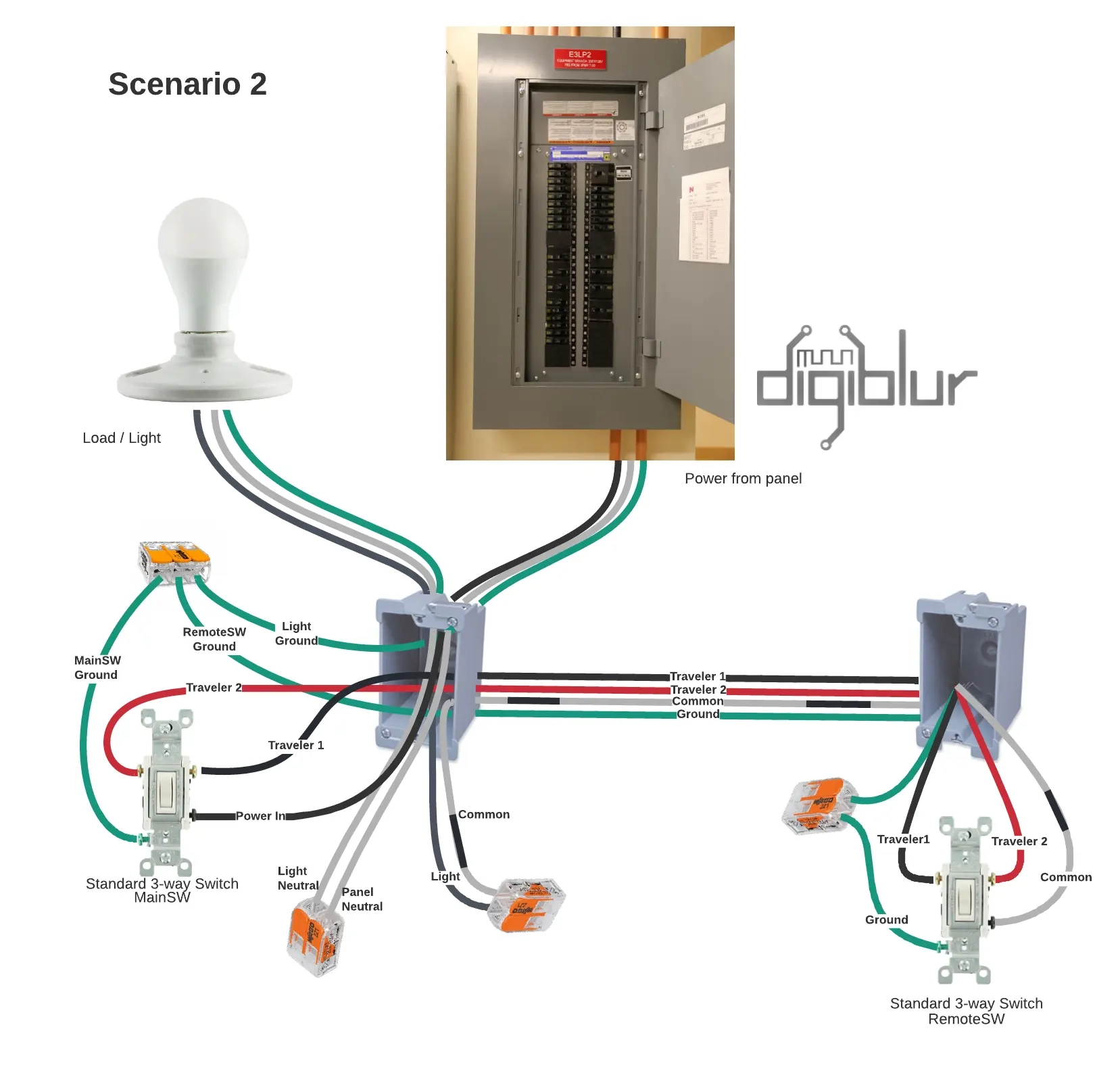

A wiring three way light switch diagram typically includes two switches and one light fixture. This setup enables you to turn the light on or off from either switch, making it perfect for hallways or large rooms.
When wiring, ensure you have the correct tools and materials. You’ll need a voltage tester, wire strippers, and electrical tape. Safety is paramount, so always turn off the power before starting any electrical work.
Follow the diagram closely to connect the wires correctly. The common terminal on each switch connects to the power source and the light fixture. The traveler terminals link the two switches, allowing them to communicate effectively.
Once everything is connected, double-check your work before restoring power. Test the switches to ensure they operate as intended. If done correctly, you’ll enjoy the convenience of controlling your lights from multiple locations.
Wiring a three-way light switch can enhance your home’s functionality. With a clear diagram and careful execution, you’ll achieve great results and feel accomplished in your DIY skills.
